Can anyone tell me what this is exactly, not sure , don't work on many 70's bike . 1975 Honda cb750 k
- Thread starter fastcat1977
- Start date
fastcat1977
CB750 Member
Is it a grounding terminal block ..?
drgnrdr750
CB750 Enthusiast
It's a rectifier
fastcat1977
CB750 Member
Do these need servicing or only replacing , never seen these older type , only use to the ones that have fins and solid housing
drgnrdr750
CB750 Enthusiast
As far as I know replacement only, you can update to a newer model if needed.
pickleknuckles
CB750 Addict
The solid state update (w the fins) replaces the regulator and the rectifier. I swapped mine out when I replaced the main harness. It all worked fine but why bother w outdated electrical bits when modern electronics are more stable/reliable and cheap. Also stepped up to an AGM battery.
barney905
CB750 Member
The official name for that is the starter motor safety unit. It sits below the rectifier. Mine's as crusty as that one. K5 with 96k on it but it's still good.
74cb750
CB750 Member
mine still works after 26,000 milies
pickleknuckles
CB750 Addict

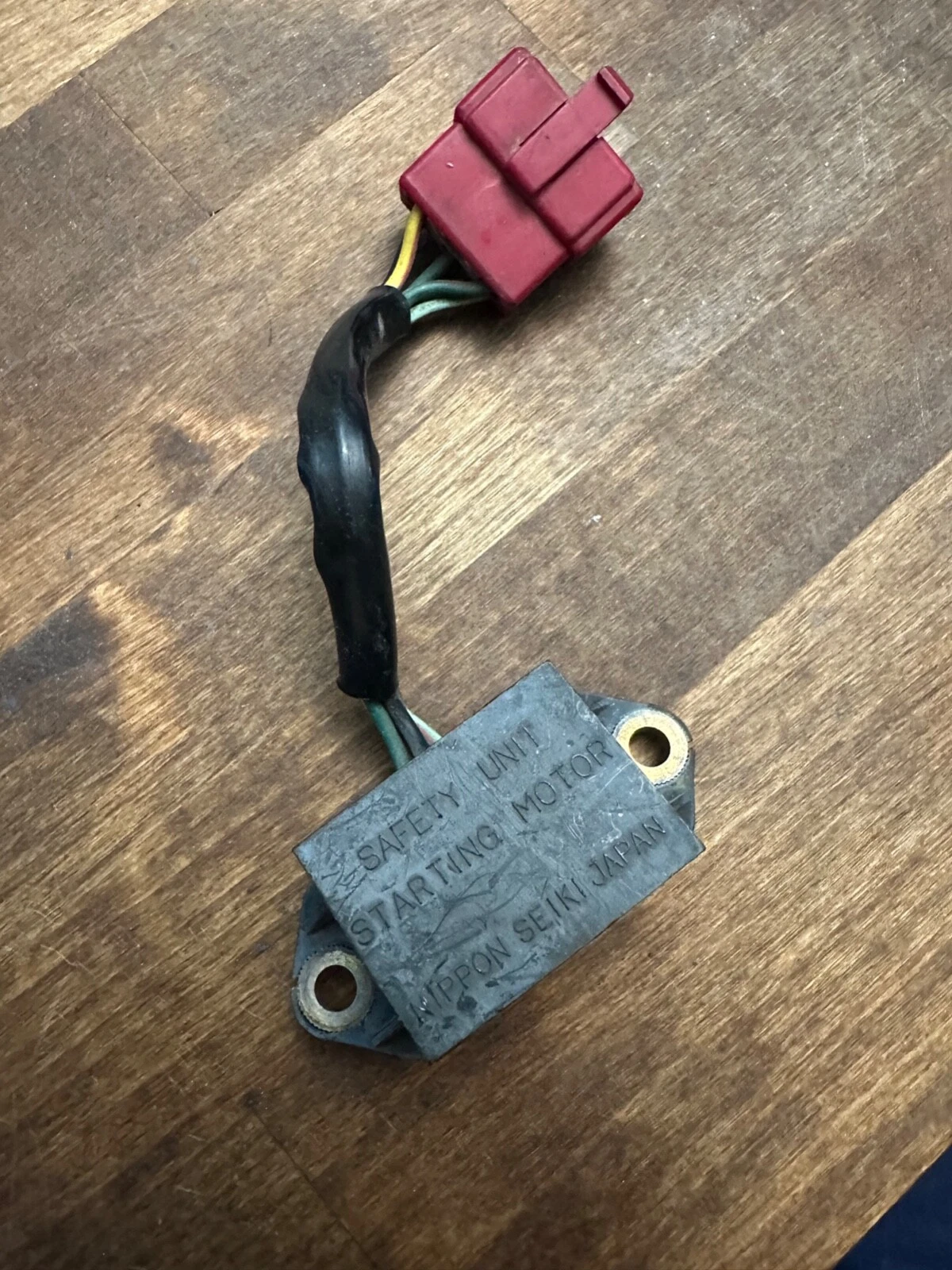

No it's not. The starter motor safety unit is the black box that says 'Japan' on it in his pic and is half cropped out. The whole thing looks like this...
barney905
CB750 Member
I stand Ashamed and corrected. You are absolutely correct. I misread the picture in the manual. Old people mistake.
pickleknuckles
CB750 Addict
Hahaha. I only knew because I just recently rewired my bike and replaced the starter safety unit w/a jumper.
